Stainless Steel PVD Coated Sheets
Stainless steel PVD sheets are decorative steel sheets coated with a thin metallic colour film through Physical Vapour Deposition (PVD) inside a vacuum chamber using cathodic arc technology. The process vaporises a target material (typically titanium) and reacts it with nitrogen or carbon gases to form compounds such as titanium nitride (TiN) for gold tones, zirconium nitride (ZrN) for champagne, and titanium carbonitride (TiCN) for rose gold PVD and warmer hues. The resulting film bonds at the atomic level to the stainless steel substrate. Unlike electroplating or painting, PVD won't peel, flake, or fade and produces zero liquid or gaseous discharge.
PVD-coated stainless steel sheets carry a coating thickness of 0.1 to 0.3 microns, applied over a base sheet thickness from 0.3 mm to 3.0 mm. Standard sheet size is 1219 x 2438 mm (4 x 8 ft), with custom sizes on request. Mirror (8K), hairline, vibration, satin, bead blast, etched, and embossed base finishes are all available with PVD colour coating in gold, rose gold, black, bronze, champagne, blue, coffee, copper, silver, and rainbow, plus optional anti-fingerprint treatment.
Stainlessinox LLP manufactures and supplies stainless steel PVD sheets from our production facility in Khopoli, near Mumbai, with our main office in Lower Parel, Mumbai. With over 30 years in the stainless steel industry and ISO certification, we stock one of India's largest decorative stainless steel sheet inventories and supply architects, interior designers, elevator manufacturers, hospitality developers, retail fit-out contractors, luxury furniture makers, and shopfitting and signage fabricators pan-India for facade cladding, lift interiors, hotel lobbies, furniture, and signage projects.
This page covers specifications, industrial applications, a comparison of PVD coating against other coating methods, and frequently asked questions.
Color Choice
Stainless Steel PVD Sheets
Specifications
The table below covers core specifications for our PVD coating stainless steel sheet range, with a coating thickness of 0.1 to 0.3 microns applied over multiple base finish options.
| Parameter | Value |
|---|---|
| Base Grades | SS 201, SS 304, SS 304L, SS 316, SS 316L, SS 430 |
| Sheet Size | 1219 x 2438 mm (4 x 8 ft); custom sizes available |
| Thickness | 0.3 mm to 3.0 mm |
| PVD Coating Thickness | 0.1 to 0.3 microns |
| PVD Colours | Gold, Rose Gold, Black, Bronze, Champagne Gold, Blue, Coffee, Copper, Rainbow, Custom |
| Base Finishes | Mirror (8K), Hairline (HL/No.4), Vibration, Satin, Bead Blast, Etched, Embossed |
| Coating Process | Physical Vapour Deposition (cathodic arc/ion plating) |
| Anti-Fingerprint | AFP coating available on request |
| Form | Sheet |
Available PVD Colours
Stainlessinox LLP offers PVD colour-coated stainless steel sheets in many standard colours, including gold, rose gold, black, bronze, champagne gold, blue, coffee, copper, silver, and rainbow. Custom colours are available on request for orders above the minimum quantity.

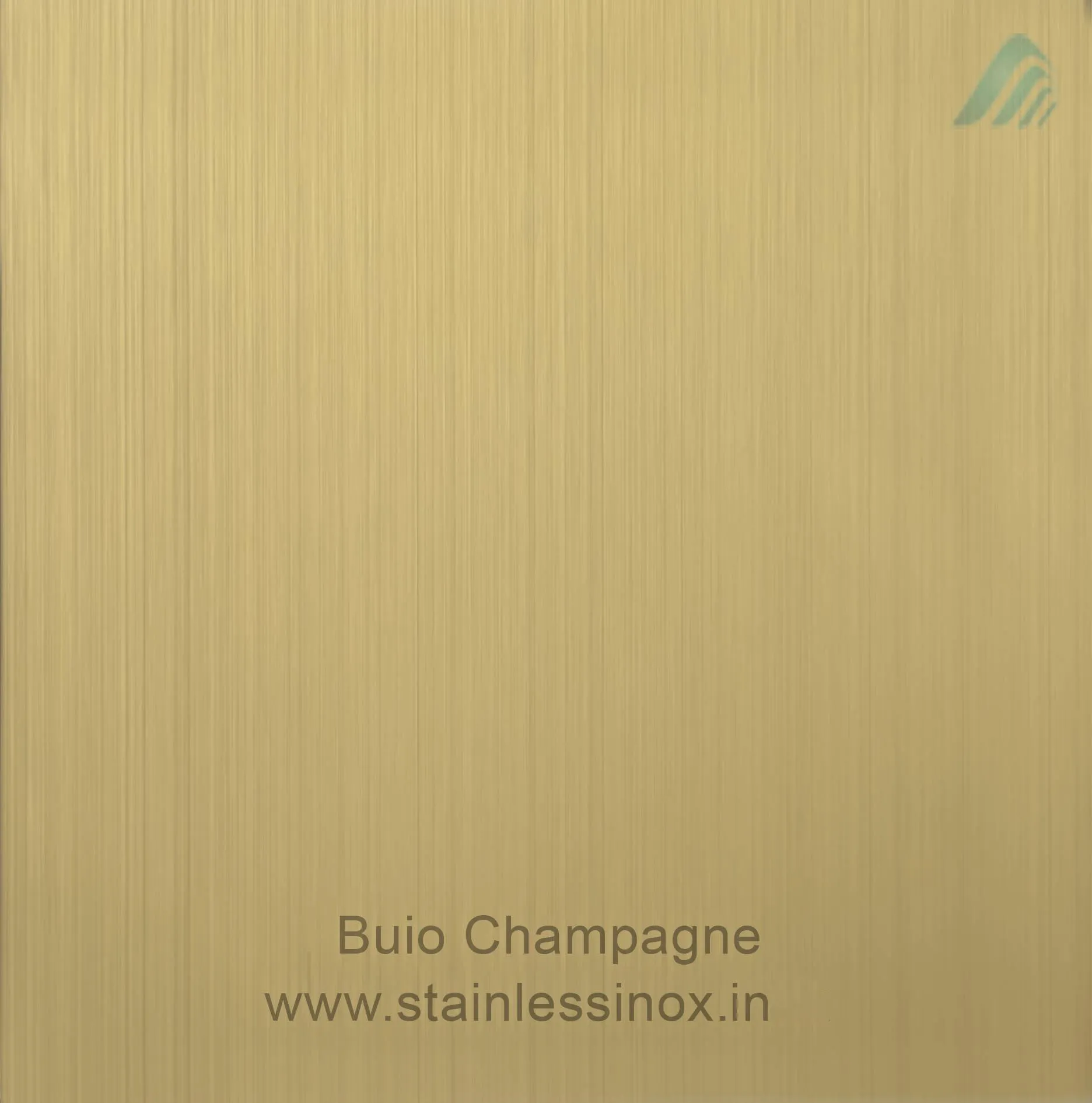

Every colour is produced by a specific coating compound deposited during the PVD process. Titanium nitride (TiN) produces gold and champagne tones. Titanium carbonitride (TiCN) creates rose gold and darker, warmer shades. Zirconium nitride (ZrN) produces a gold-like tone, while champagne shades are achieved by adjusting coating thickness and process parameters. Black PVD finishes use titanium, aluminium, carbonitride or chromium-based compounds. These aren't pigments or dyes; the colour originates from the optical properties of the deposited thin film and how it interacts with light.

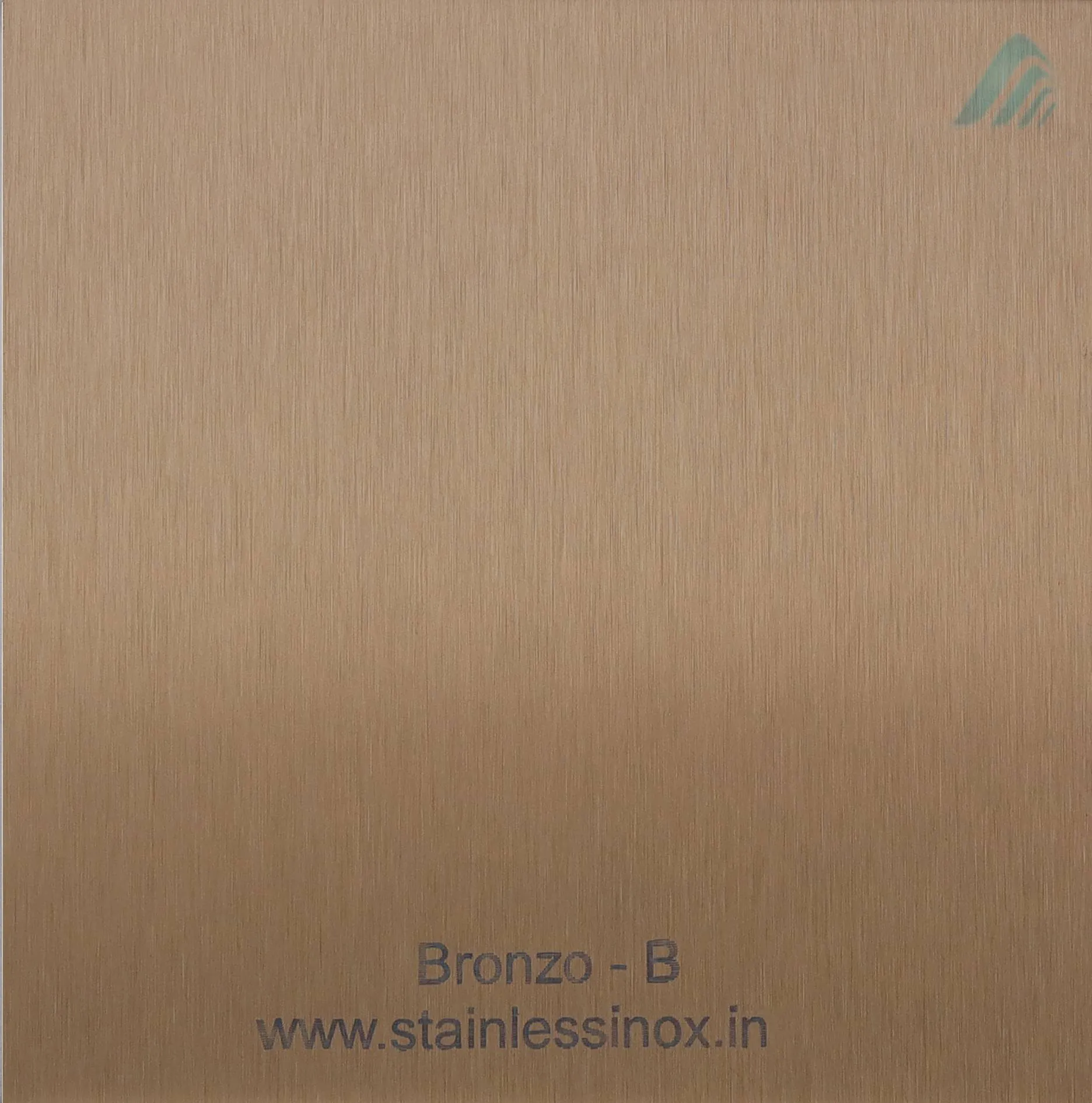

Gold and rose gold stainless steel sheets are the most specified colours for hotel lobbies and elevator interiors. Black stainless steel sheets and bronze stainless steel sheets suit commercial facades and retail shopfitting.
Available Base Finishes
The base finish is applied to the stainless steel sheet before PVD coating. It controls how light reflects off the final coloured surface.
- Mirror (8K/No.8): highest reflectivity; creates a liquid-like depth beneath the PVD colour layer. Mirror PVD stainless steel sheets are specified for elevator panels and reception walls.

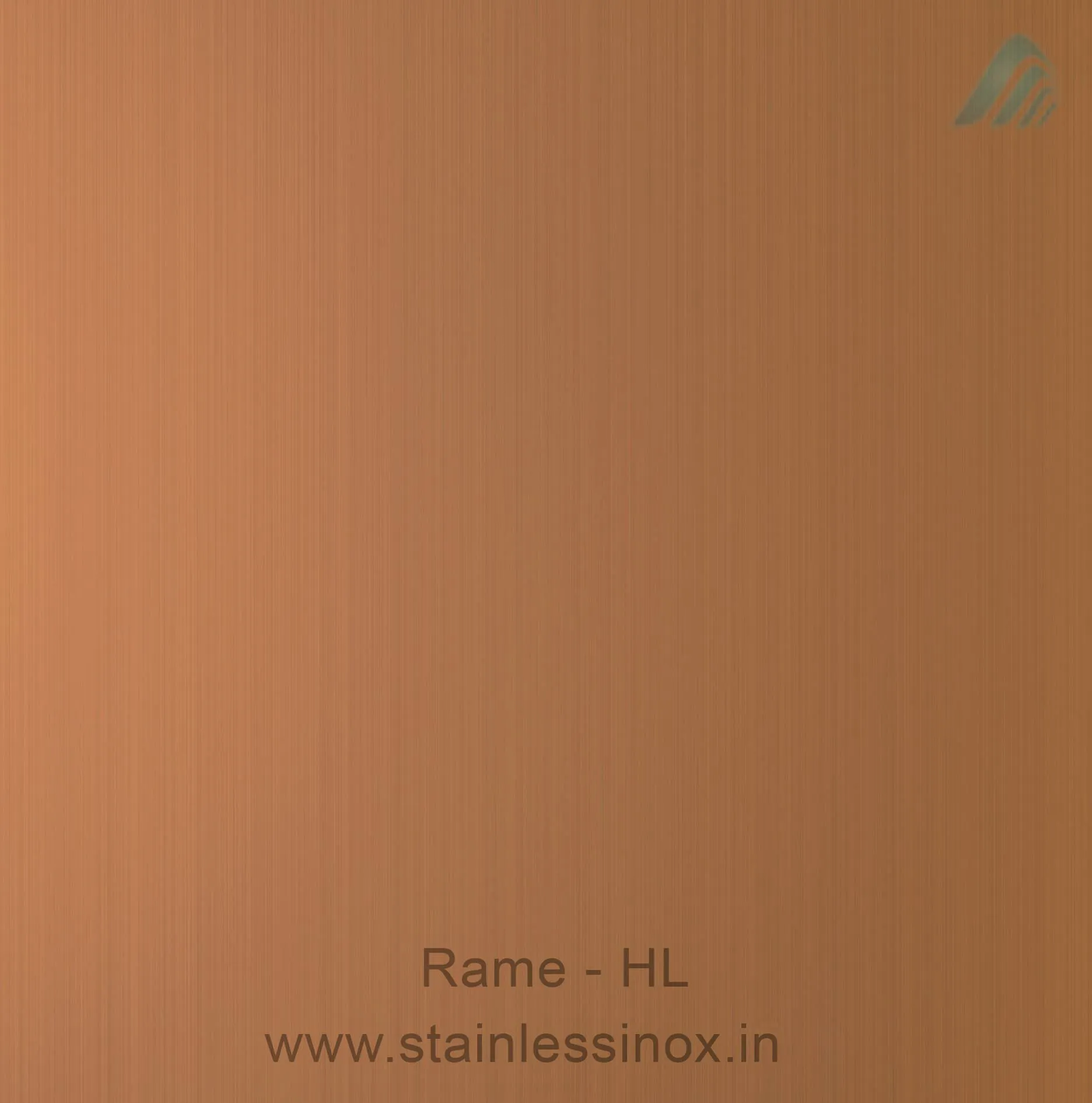

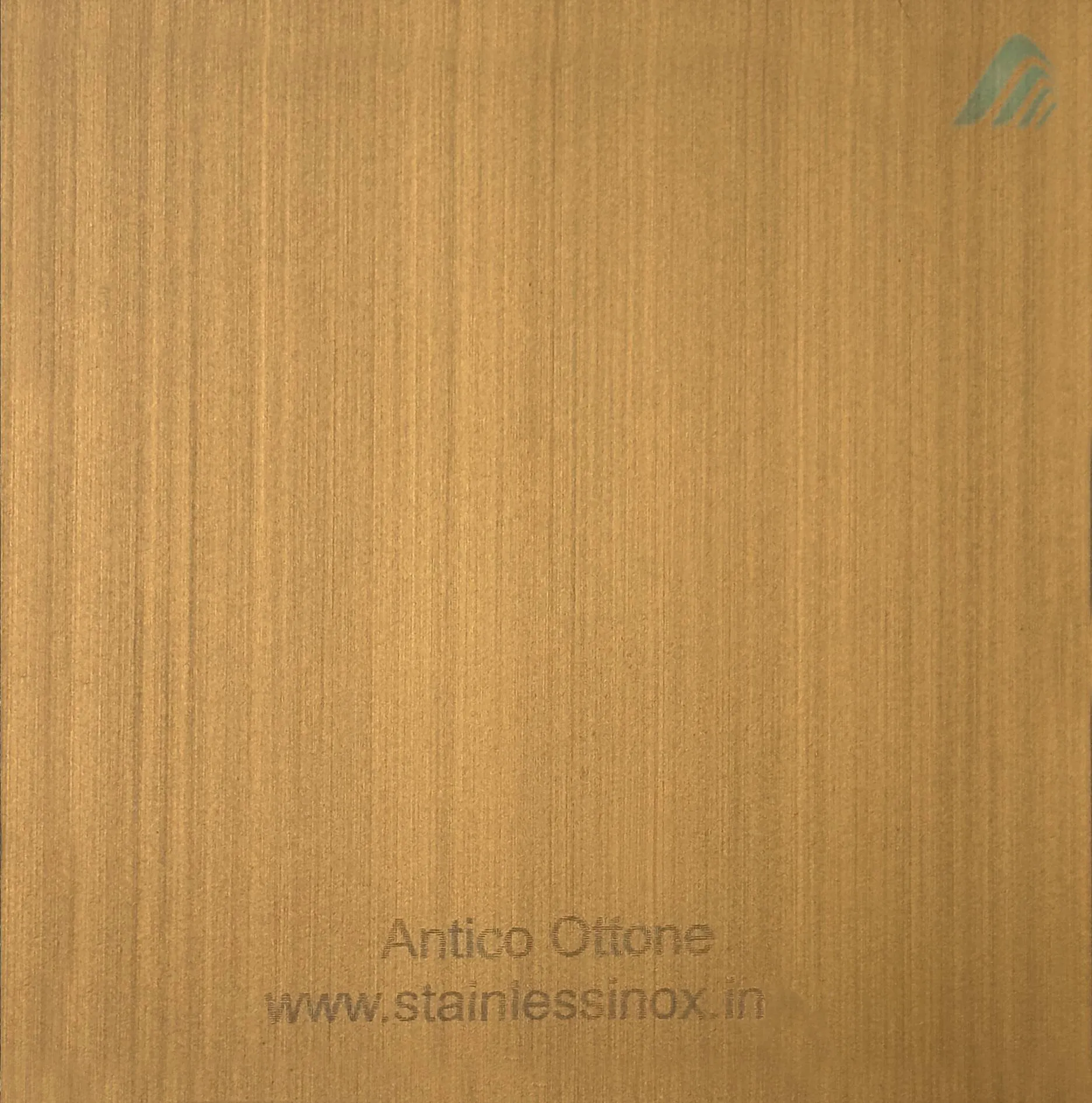

- Hairline (HL/No.4): directional grain that softens colour intensity and reduces visible fingerprints. Hairline PVD stainless steel sheets work well in high-traffic corridors and lift lobbies.

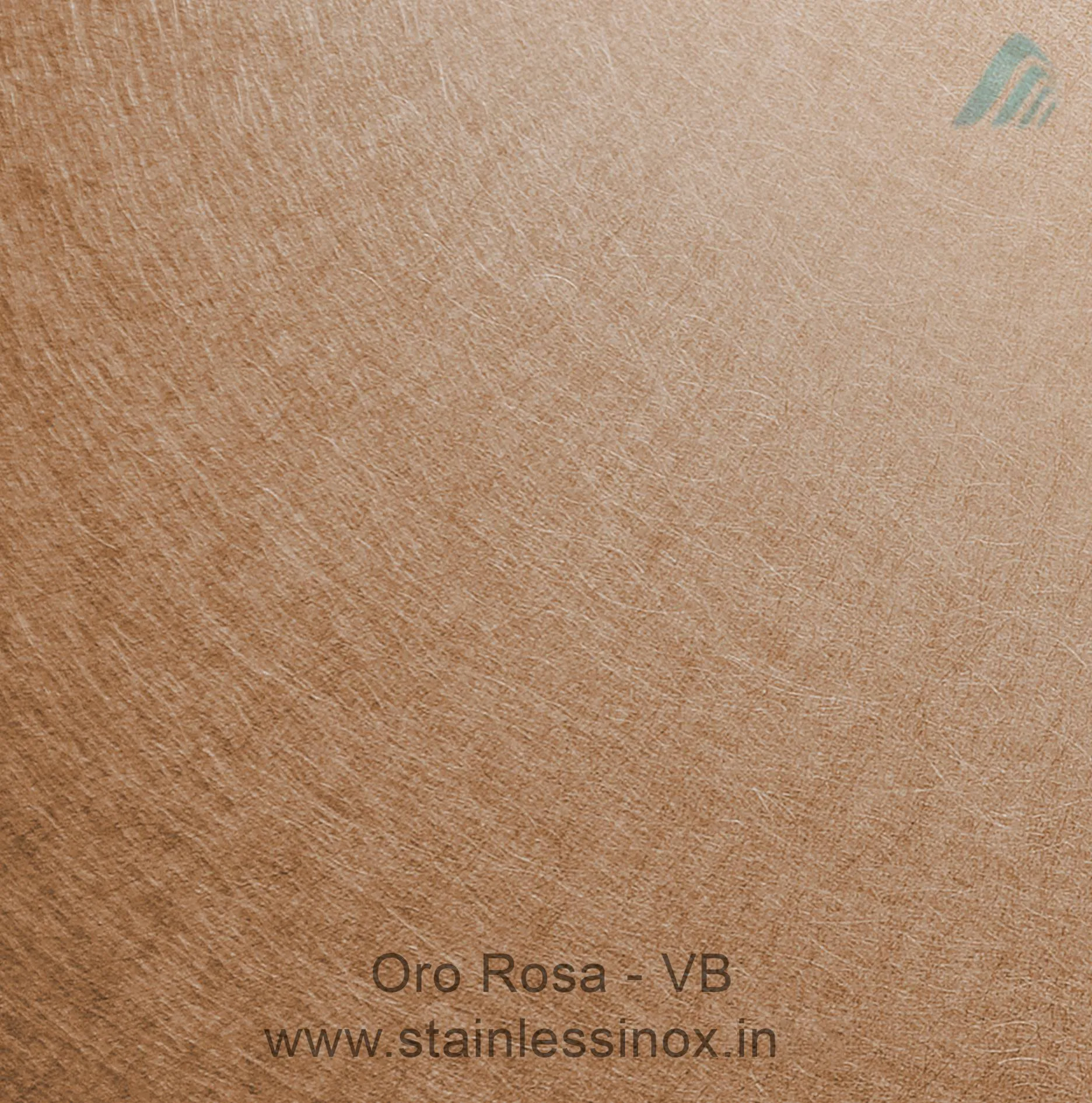

- Vibration: non-directional, circular-brushed texture that scatters light evenly. It masks surface marks better than mirror or hairline finishes.
- Satin: a smooth, muted surface with low gloss. Satin PVD stainless steel sheets suit furniture panels and wall cladding where a subtle colour effect is preferred.

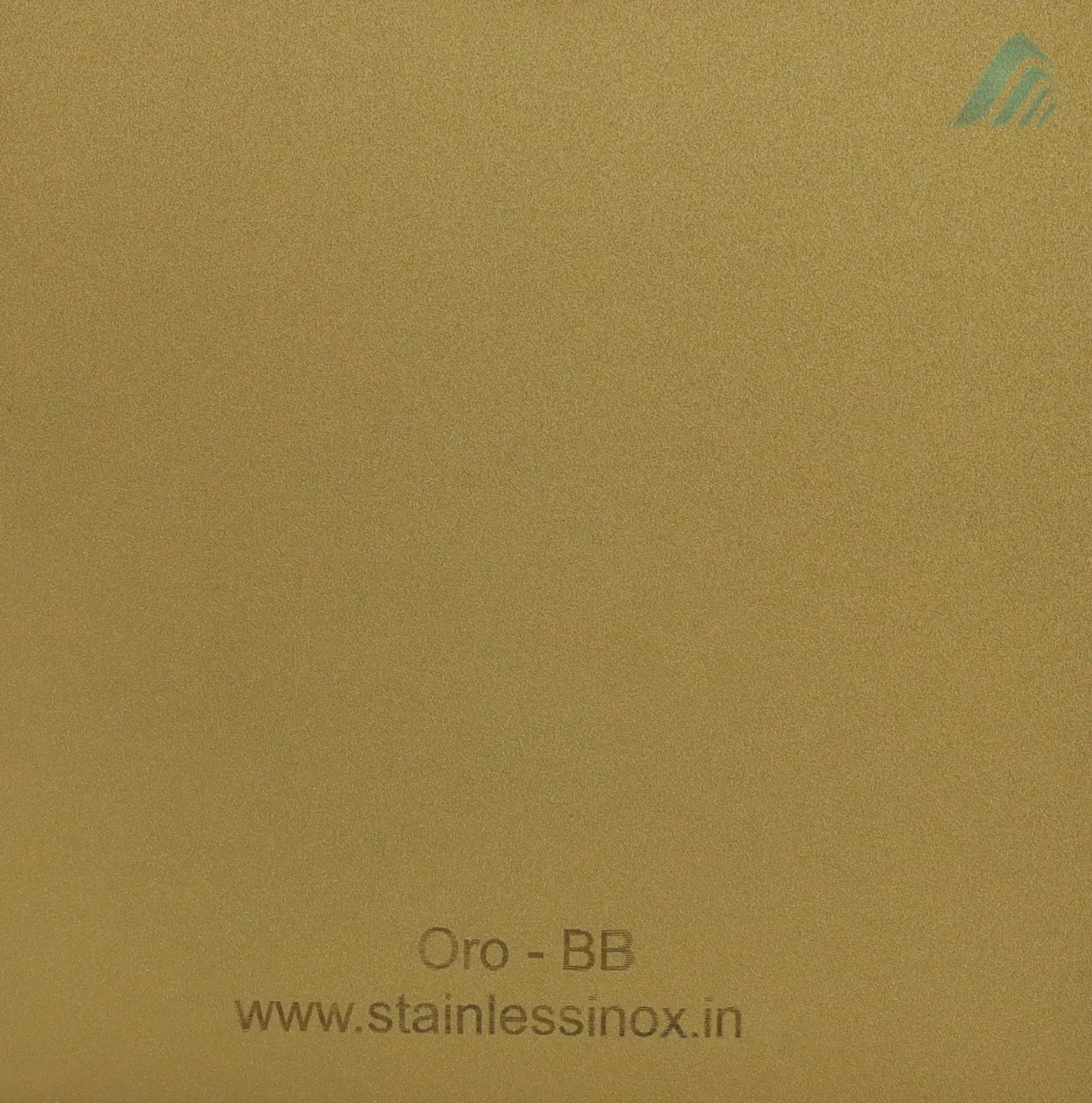

- Bead Blast: a matte, non-directional texture formed by compressed air abrasive treatment. It produces a soft, diffused PVD colour appearance.

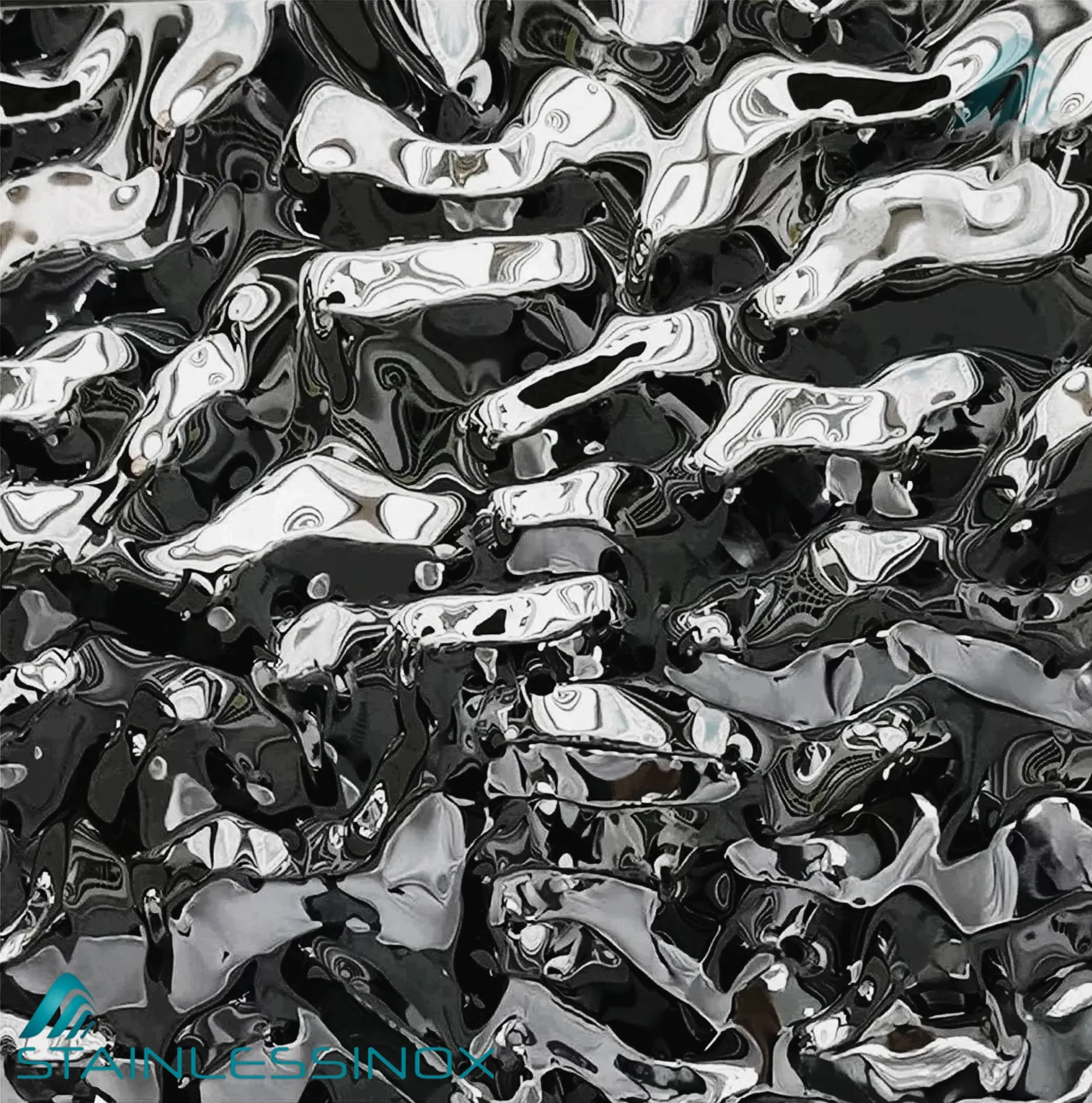

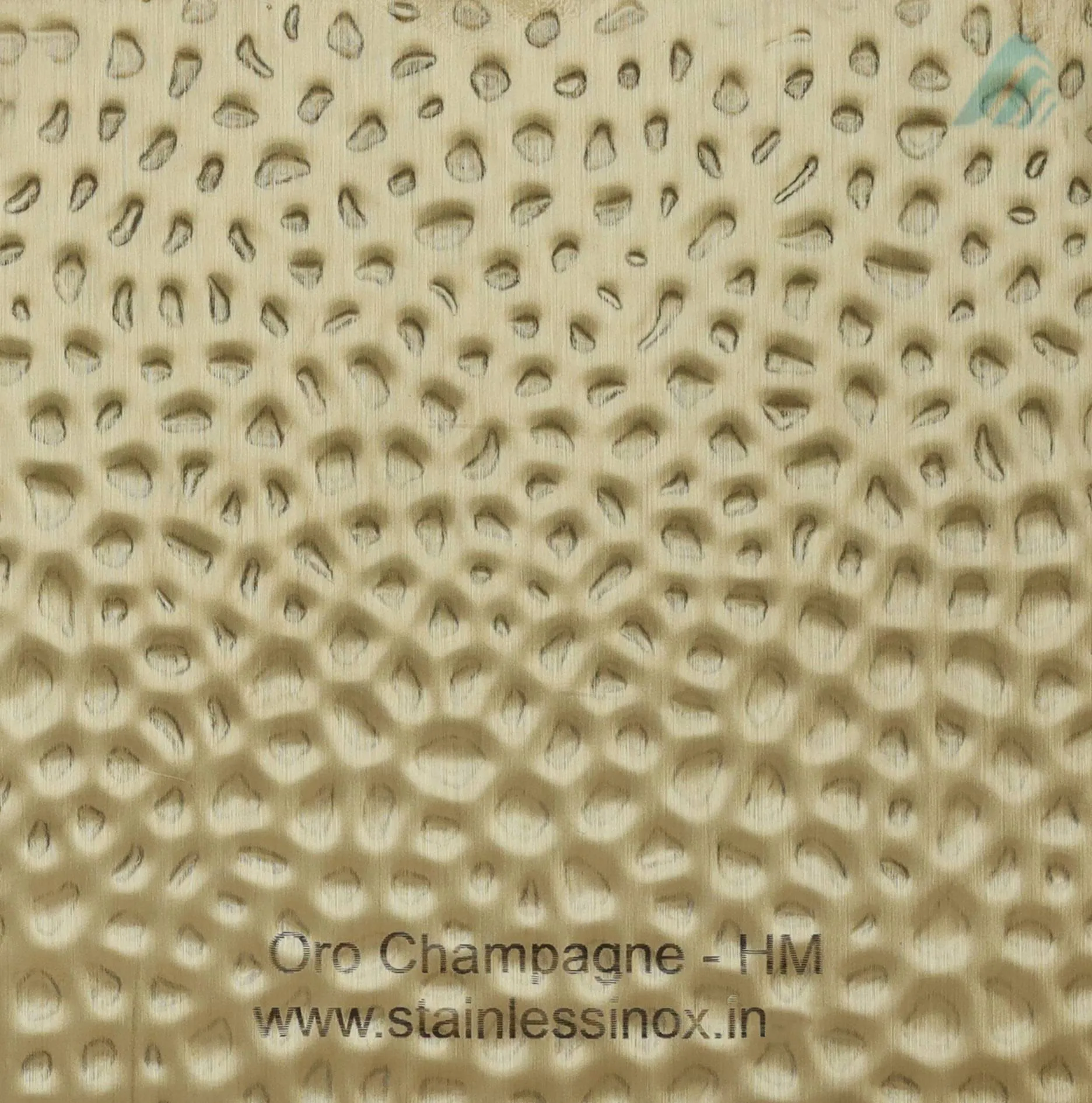

- Etched and Embossed: patterned surfaces that add a tactile, 3D element to the PVD colour finish. Etched designs can be customised to project requirements.
Anti-fingerprint stainless steel sheets with AFP nano-coating are available across all base finishes. The transparent layer repels oils and water, keeping the PVD surface free of smudge marks.
Stainless Steel PVD Sheets Industrial Applications

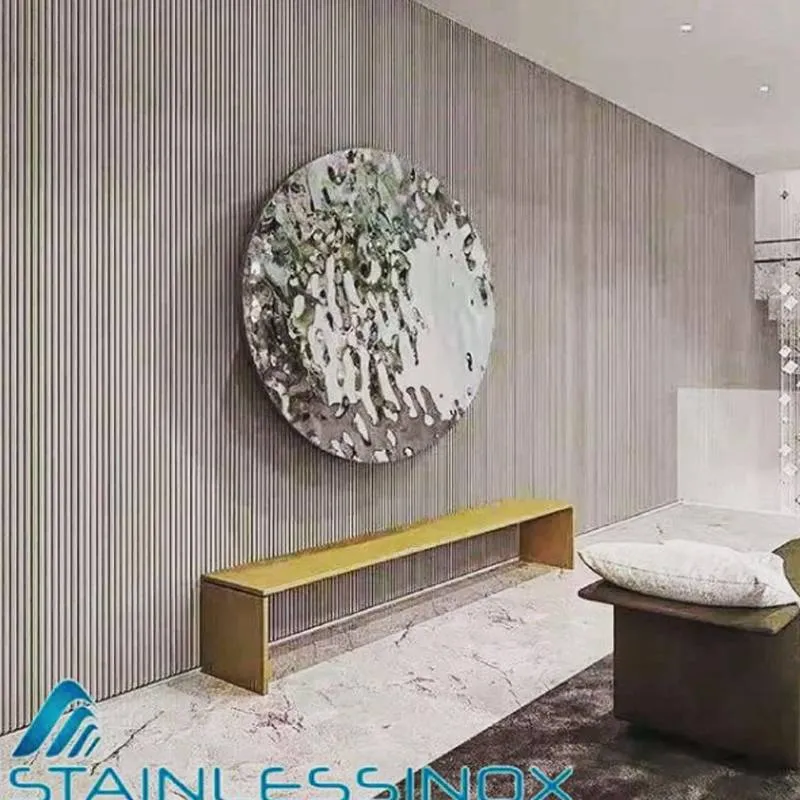

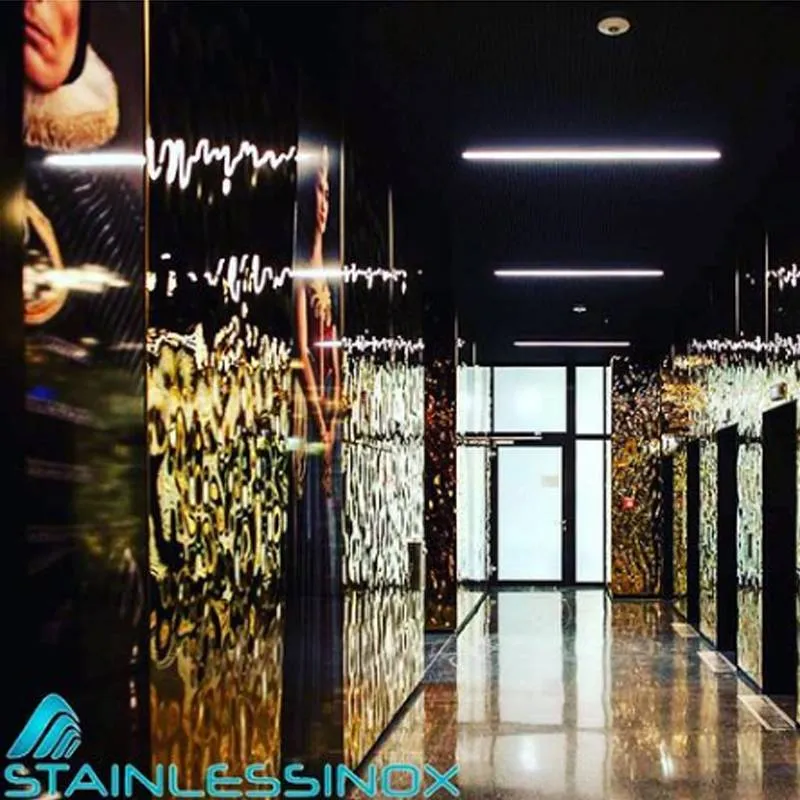

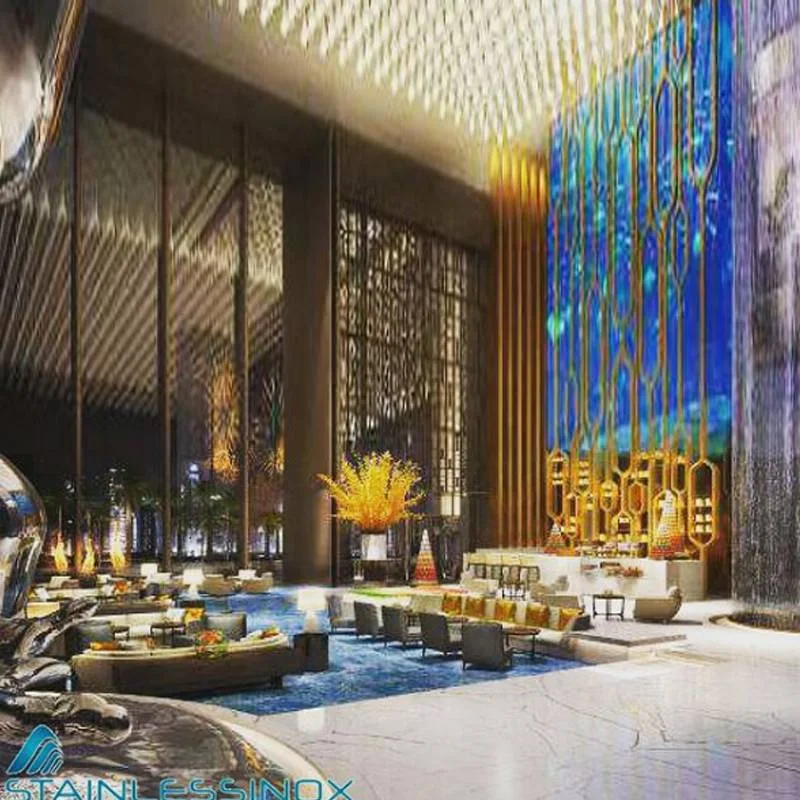

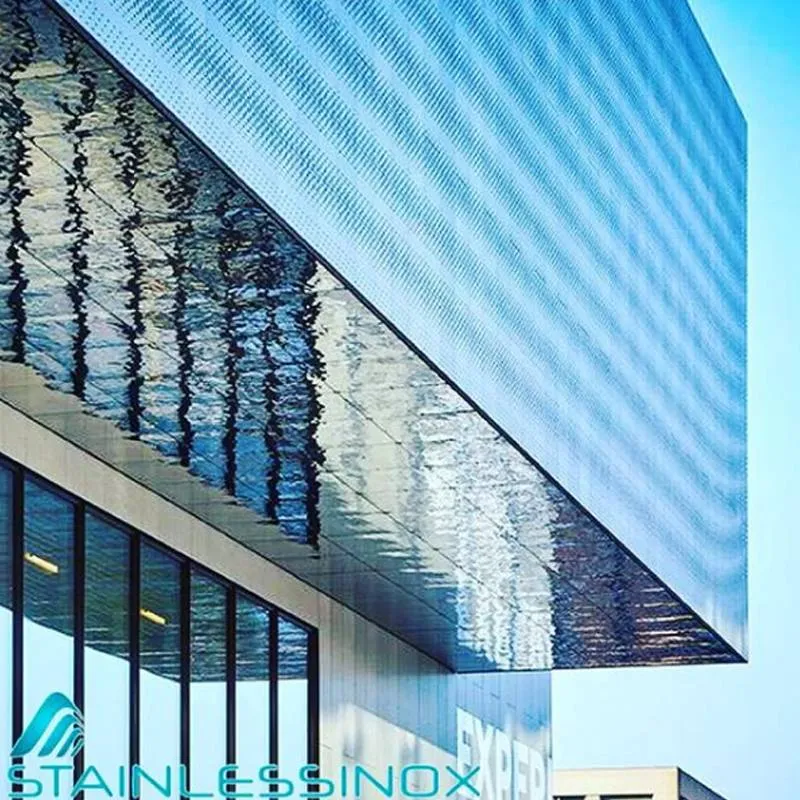

PVD-coated stainless steel sheets are used across architectural cladding, elevator interiors, hotel and restaurant decoration, and furniture fabrication. Coloured stainless steel sheets bring durable, fade-resistant metallic finishes to commercial and residential projects.
Stainless Steel PVD Sheets FAQ
Common questions about stainless steel PVD sheets answered by our technical team.
A PVD sheet is a stainless steel sheet coated with a thin metallic film through Physical Vapour Deposition. The process takes place inside a vacuum chamber where a target material (typically titanium) is vaporised and reacted with nitrogen or carbon gases to create compounds such as titanium nitride (TiN). The resulting film produces durable decorative colours, including gold, rose gold, black, bronze, and champagne on the stainless steel surface. PVD sheets are also referred to as titanium-coated stainless steel sheets or vacuum-coated stainless steel sheets.
The PVD coating layer on stainless steel sheets is typically 0.1 to 0.3 microns thick. The base sheet itself ranges from 0.3 mm to 3.0 mm. Despite being extremely thin, the PVD film is harder than conventional electroplated finishes because it bonds to the substrate at the atomic level. Coating thickness within this range is controlled by adjusting deposition time and process parameters in the vacuum chamber.
PVD coating on stainless steel sheets lasts 10 to 15+ years for indoor applications without colour fading, delamination, or tarnishing. Outdoor lifespan varies with the base material, coating thickness, and environmental exposure. Higher chloride-resistant PVD sheets with 0.3 micron coating thickness perform best in exterior and coastal settings. The coating won't peel, flake, or fade in normal use conditions.
Stainlessinox LLP stocks PVD sheets in 10 standard colours: gold, rose gold, black, bronze, champagne gold, blue, coffee, copper, silver, and rainbow. Each colour corresponds to a specific coating compound deposited during the PVD process. TiN produces gold tones, ZrN creates champagne shades, and TiCN generates warm rose gold and darker hues. Custom colours are available on request.
Yes. The thin PVD layer (0.1 to 0.3 microns) can be used for bending, folding, or welding operations. Fabricators can form the sheet after coating without damaging the colour film. Low-carbon variants are preferred for welded assemblies as they reduce the risk of intergranular corrosion at weld zones.
Stainlessinox LLP is a trusted SS PVD coating sheets manufacturer and supplier in Mumbai, India. We have more than 30 years of industry experience, in-house PVD coating at our Khopoli facility, hold ISO certification, and are one of the largest decorative stainless steel inventories in India. We supply architects, interior designers, elevator manufacturers, hospitality developers, retail fit-out contractors, luxury furniture makers, shopfitting fabricators, and signage manufacturers pan-India. Contact us for technical data sheets and project-specific quotes.
